XIXIN !s NINETEEN INCH
CABLING ACCESSORIES
The 700 and 800mm wide Eikon II is ideal for cabling installations. The rack is supplied with standard 19” racking mounted centrally which allows a gap down each side for cable management. Together with this we offer a range of cabling accessories.
CABLE INFILL PANELS
Available for both 700 and 800mm cabinets and heights from 27U up.
ORDER REF: EII.CIP followed by the height and width of cabinet.
CABLE SUPPORT GUIDES
For use without cable infill panels, these rings fit to each side of the 19” racking. Available for both 700 and 800mm wide cabinets.
ORDER REF: AC.CSG followed by the width of the cabinet.
CABLE RINGS
A simple open sided ring which fixes onto the infill panels providing vertical cable management. Available for both 700 and 800mm wide cabinets.
ORDER REF: AC.CR followed by the width of the cabinet.
XIXIN CAN ALSO SUPPLY A COMPREHENSIVE RANGE OF PATCH PANELS. PLEASE CONTACT US FOR MORE DETAILS.
CABLE MANAGEMENT PANELS
A 1U x 19” panel with 4 cable loops providing horizontal cable management.
CABLE TRAY
Galvanized cable tray available in two widths, 150mm and 300mm
ORDER REF: AC.CT followed by the U height and width required.
EII OPTIONS/GA

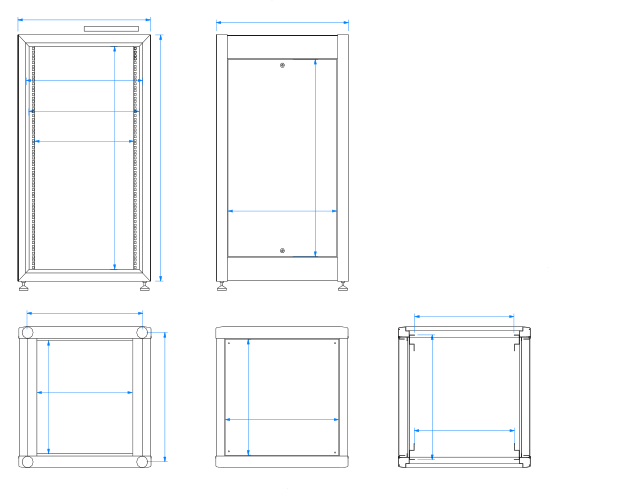

CABINET DIMENSIONS
*RACKING CAN BE CENTRALLY MOUNTED IN 700 AND 800MM WIDE RACKS TO GIVE STANDARD 19” RACKING
W1
W2
W3
W4
H2
H1
D1
H3
D2
W6
W5
D3
D4
D6
W8
W4
D5
W7
BASE
TOP
CROSS SECTION
HEIGHTS
STANDARD ‘U’ HEIGHTS 6, 9, 12, 15, 18, 21, 24, 27, 30, 33, 36, 39, 42, 45, 47
H1 = ‘U’ HEIGHT X 44.45 + 103
H2 = ‘U’ HEIGHT X 44.45 + 3
H3 = H1 - 209
WIDTHS
W1 = 600, 700, 800,900
W2 = W1 - 70
W3 = W1 - 100
W4 = W1 - 150 *
W5 = W1 - 214
W6 = W1 - 80
W7 = W1 - 145
